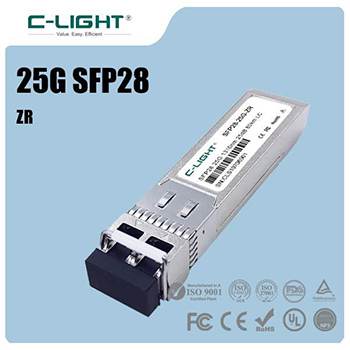

25G/10G Auto Adapting 80km SFP丨C-LIGHT

25G/10G Auto-Adapting 80km SFP Transceiver automatically adapts between 25Gbps and 10Gbps speeds, supporting long-distance fiber transmission up to 80km. Housed in an SFP form factor, it delivers high compatibility for bandwidth-intensive applications such as data center interconnects and metropolitan area network expansion.

-40℃~85℃ 丨 25G/10G Auto Adapting 丨

80km with FEC Support 丨Factory warranty

CLSFP25GZRI

25G-SFP28-80km ●Supports 25GBASE(25Gb/s) and 10GBASE(10Gb/s);

●Lane max bit rate 25.78 Gb/s;

●Up to 80km transmission on SMF, with FEC support by host board;

●High power 1310nm laser and APD receiver;

●High speed I/O electrical interface (25GAUI);

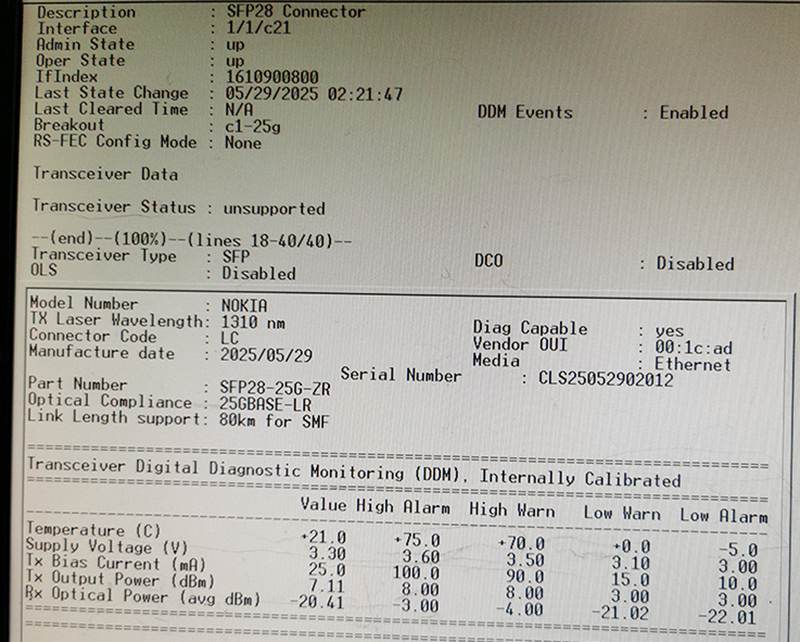

●I2C interface with integrated Digital Diagnostic monitoring;

●SFP28 MSA package with duplex LC connector;

●Single +3.3V power supply; Maximum power consumption 1.5 W;

●Operating case temperature: Refer to Order info.

●Compliant to IEEE 802.3cc Draft3.0, SFF-8402 and SFF-8432;

●Operate case temperature -40℃~85℃

Specification
Number	CLSFP25GZRI	Vendor	C-LIGHT
Form Factor	SFP28	Data Rate Max	25.78Gbps 10.31Gbps
Wavelength	1310nm	Max Cable Distance	80km
Connector	Duplex LC	Media	SMF
Transmitter Type	DML 1310nm	Receiver Type	APD
TX Power	4.5~6.5dBm	Receiver Sensitivity	< -20dbm
Power Budget	>24dB	Receiver Overload	-5dBm
Power Consumption	≤1.5W	Extinction Ratio	>4dB
DDM/DOM	Supported	Industrial Temperature Range	-40 to 85°C
CDR	TX & RX Built-in CDR	FEC Function	Support
Protocols	SFF-8472, SFF-8432, SFF-8431	Warranty	3 Years
Core Size	G.652	Packaging Technology	BOX Packaging

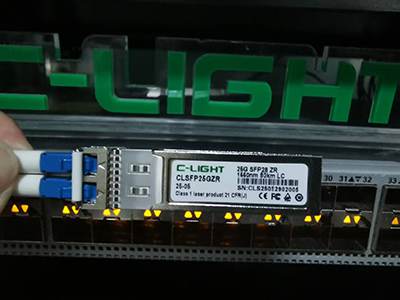

System Test

Test video

Related Products
Number	CLSFP25GZRI	CLSFP25GERI	CLSFP25GDW40P-XX
Wavelength	1310nm	1310nm	C-Band DWDM
Connector	LC Simplex	LC Duple	LC Simplex
Cable Distance (Max.	80km	40km	40km
Data Rate	25.78Gbps	25.78Gbps	25.78Gbps
Transmitter Type	DFB	DFB	EML
TX Power	>4.5dBm	>-0.5dBm	>-1dBm
Receiver Sensitivity	< -20dbm	< -18dbm	< -15dbm
Application	Access Network	Access Network	Data Center

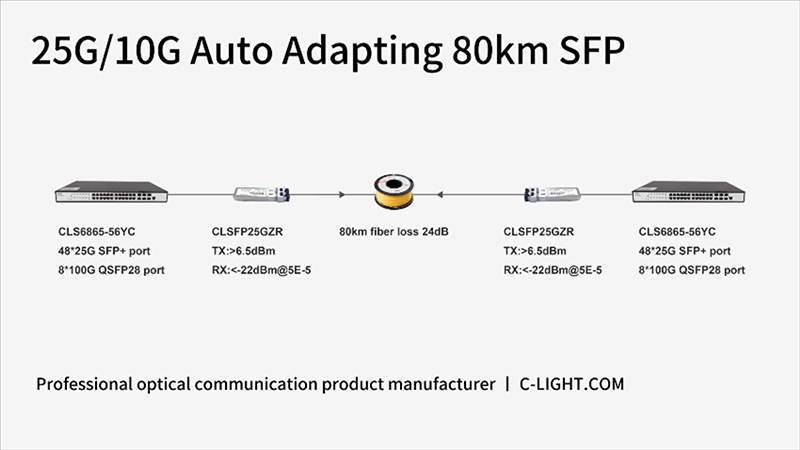

Application Graph
